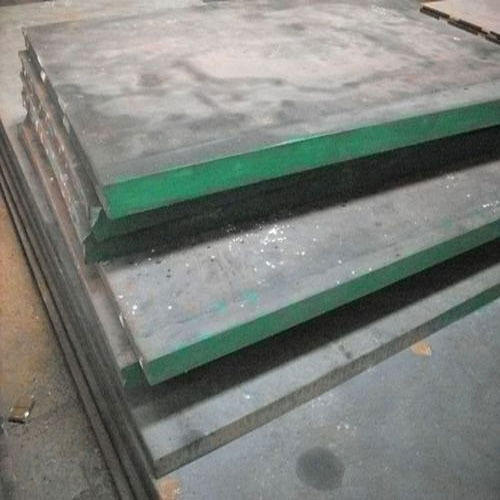

1.2316 Mould Tool Steel Sheet
170 INR/Kilograms
Product Details:
- Diameter Not Applicable (Sheet/Plate Form)
- Corrosion Resistant Excellent corrosion resistance
- Material Composition % C 0.33%, Si 0.50%, Mn 1.20%, Cr 16.00%, Mo 1.20%
- Hardness 229-270 HB (Annealed), up to 50 HRC (Hardened)
- Heat Resistance Yes
- Coating Type Uncoated, available with customized coating on request
- Product Form Sheet / Plate
- Click to view more
X
1.2316 Mould Tool Steel Sheet Price And Quantity
- 50 Kilograms
- 170 INR/Kilograms
- Annealed
- Limited, may require pre- and post-weld heat treatment
- EN ISO 9445 standard
- Ferritic-Martensitic with uniform carbide distribution
- Yes (for specific hardening processes)
- Up to 300C continuous
- Good machinability in soft annealed condition
- High toughness for mould applications
- ~23.5 W/mK
1.2316 Mould Tool Steel Sheet Product Specifications
- 2 mm to 80 mm (custom on request)
- Construction
- Minimum 950 N/mm
- Sheet / Plate
- Width: up to 2000 mm, Length: up to 6000 mm (Custom sizes available)
- Yes
- Mill finish, Polished
- Uncoated, available with customized coating on request
- D2 1.2379
- C 0.33%, Si 0.50%, Mn 1.20%, Cr 16.00%, Mo 1.20%
- Bright, Polished, Hot Rolled or Annealed
- Excellent corrosion resistance
- DIN, AISI, JIS, EN Standard Compliant
- Custom sizes available (as per requirement)
- Mould Tool Steel
- 1.2316
- Steel Bars
- Yes
- 229-270 HB (Annealed), up to 50 HRC (Hardened)
- Used in plastic injection moulds, die casting moulds, and corrosion-prone environments
- Rectangular Sheet
- Not Applicable (Sheet/Plate Form)
- C: 0.33% | Si: 0.50% | Mn: 1.20% | Cr: 16.00% | Mo: 1.20%
- Other
- Silver
- Varies with sheet size and thickness
- Annealed
- Limited, may require pre- and post-weld heat treatment
- EN ISO 9445 standard
- Ferritic-Martensitic with uniform carbide distribution
- Yes (for specific hardening processes)
- Up to 300C continuous
- Good machinability in soft annealed condition
- High toughness for mould applications
- ~23.5 W/mK
1.2316 Mould Tool Steel Sheet Trade Information
- Cash in Advance (CID), Cash Advance (CA)
- 1 Kilograms Per Week
- 1 Days
- Yes
- Free samples are available
- All India
Product Description
1.2316 mould tool steel has high degree of purity, uniformity and cleanliness through electro slag re-melted process.
Chemical Composition :-
- C : 0.33 0.43%
- Cr : 15.00 17.00%
- Mo : 1.00 1.30%
- Si : 1.00% max
- Mn : 1.0% max
- S : 0.005% max
- Ni : 1.00% max
Equivalent :-
- GMTC : 1.2316(ESR)
- BUDERUS : 2316 ISO-B MOD
- DIN : 1.2316
- DAIDO : PD742
- ASSAB : RAMAX
- KOBE : KTSM420
Applications :-
- Die casting mould
- Injection mould for plastics
- Moulding of corrosive material(PVC)
Features :-
- Good Machinability
- Homogenization of hardness
- Good polishability
- High toughness and wear-resisting properties.
Superior Resistance and Durability
With a high chromium content (16%), 1.2316 Mould Tool Steel Sheet offers remarkable corrosion resistance, making it suitable for use in humid, chemical, or corrosive environments. Its high toughness and robust structure allow for prolonged use and minimal maintenance, specifically in applications demanding reliability and consistent performance.
Versatile Applications in Moulding Industries
This steel sheet is widely used in the production of plastic injection and die casting moulds, as well as in construction and other demanding sectors. Its superior machinability and customizable dimensions enable manufacturers to tailor solutions for complex or precision applications, maximizing efficiency and quality.
Custom Delivery and Flexible Sizing
Supplied in an annealed condition, sheets are available in custom widths (up to 2000 mm), lengths (up to 6000 mm), and thicknesses from 2 mm to 80 mm. This flexibility allows distributors and importers in India to meet a wide range of specifications, providing clients with steel sheets tailored to their unique project requirements.
FAQs of 1.2316 Mould Tool Steel Sheet:
Q: How is the flatness of the 1.2316 Mould Tool Steel Sheet assured?
A: The flatness tolerance for the 1.2316 steel sheet is maintained according to the EN ISO 9445 standard, ensuring precise and consistent surface flatness suitable for mould making and industrial tooling applications.Q: What makes 1.2316 Mould Tool Steel Sheet suitable for corrosion-prone environments?
A: The sheets composition includes 16% chromium, imparting excellent corrosion resistance, which is crucial for moulds used in chemicals or high-moisture environments, enhancing longevity and reducing maintenance.Q: When should pre- and post-weld heat treatment be considered for this steel?
A: Because weldability is limited, pre- and post-weld heat treatments are recommended when welding the 1.2316 steel sheet to maintain its properties, prevent cracking, and preserve the sheets microstructural integrity.Q: Where can 1.2316 Mould Tool Steel Sheets be used?
A: These sheets are commonly used in plastic injection moulds, die casting moulds, construction projects, and any setting demanding high toughness, corrosion resistance, and precision fabrication.Q: What is the process for achieving higher hardness in the 1.2316 steel sheet?
A: To reach maximum hardness (up to 50 HRC), the steel sheet undergoes a water hardening process after suitable heat treatment, transitioning from its annealed hardness of 229270 HB.Q: How does the sheets thermal conductivity benefit its usage in moulding?
A: With a thermal conductivity of approximately 23.5 W/mK, the steel sheet enables efficient heat dissipation, reducing thermal fatigue and improving moulding cycle times in plastic or die casting operations.Q: What are the advantages of ordering custom-sized 1.2316 Mould Tool Steel sheets?
A: Custom sizing allows clients to acquire sheets tailored to specific project requirements, minimizing waste, optimizing production efficiency, and ensuring compatibility with diverse mould and tooling designs.Tell us about your requirement
